ADVANTAGES OF THE MFS80 COIL CUTTER

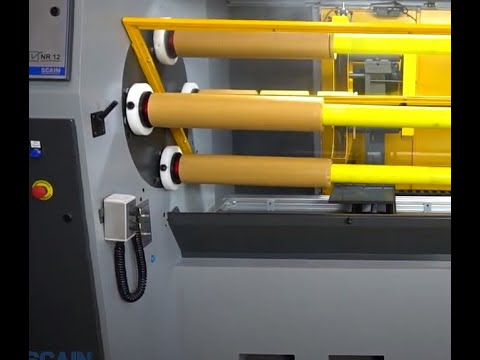

Metalúrgica Scain's Ribbon Spool Cutting Machine has a quadruple carousel system, which allows cutting on 2 axes, while the others remain outside the equipment so that new coils can be placed and removed, all this without the need to stop the machine's work.

This Fabric Cutting Machine has a Production Efficiency Monitoring System, which guarantees a better performance and also a control with the machine time worked and stopped. In addition, this same system has a productivity alarm that can be configured by the time it is stopped.

Another point of equal advantage when choosing the MFS80 Tape Cutting Machine from Metalúrgica Scain is that it has a LOG System, which allows standardization of future cuts. In other words, it is possible to save a configuration used in one job to another.

Even so, this equipment has an electronic adjustment of the width and number of cuts, the creation of up to 100 recipes for different cuts and also the possibility of mounting up to 3 types of cuts on the same coil.


TECHNICAL CHARACTERISTICS OF COIL CUTTING MACHINE MFS80

Find out more about all the technical characteristics of Metalúrgica Scain's Ribbon Cutting Machine:

⮞ Coil Slitting Machine MFS80 with motorized main shaft and cutting disc | Electronic RPM control for both;

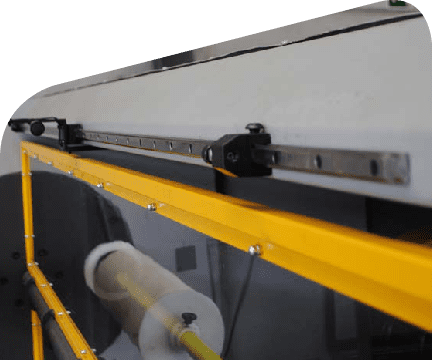

⮞ Movement of carriages under Linear Guides;
⮞ Drives through Servo Motors;
⮞ Main shaft coated with polyurethane bushings | Quick liner change system;

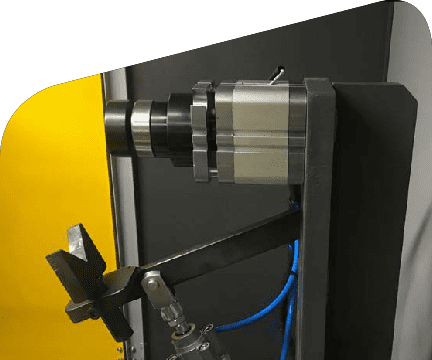

⮞ Coil Slitting Machine MFS80 with pneumatic tailstock;
⮞ Fixing the coil through an expanding bushing | Zero loss of material for fixing;
⮞ Automatic lubrication system (spraying) | With gutters and filters to return excess liquid;
⮞ Structure with epoxy painting (TOP COAT) |With fittings for easy transport;
⮞ Coil Slitting Machine MFS80 with steel carousel structure with crystal polycarbonate windows.


CONSUMABLES AND SPARE PARTS (SPARE PARTS) FOR COIL CUTTING MACHINE MFS70

We have all the necessary consumables to keep your MFS80 Coil Cutting Machine and your production always running safely and reliably:

⮞ Shaft lining bushings;
⮞ Cutting discs;
⮞ Cutting disc cooling fluid;
⮞ Disc sharpening service;
⮞ Special shafts with Ø smaller than 3”(76.20mm);
⮞ Self-manufactured Spare Parts.

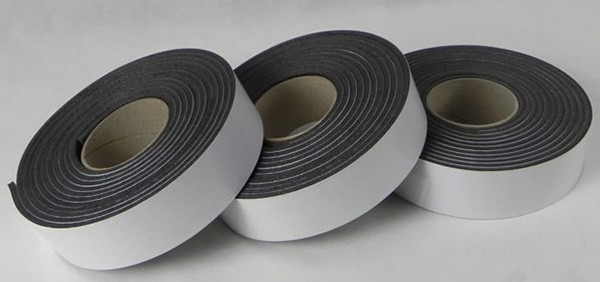

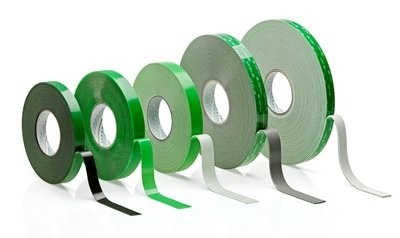

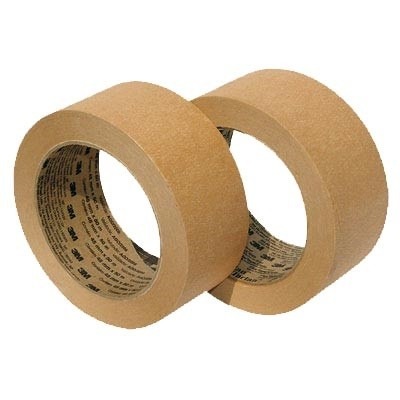

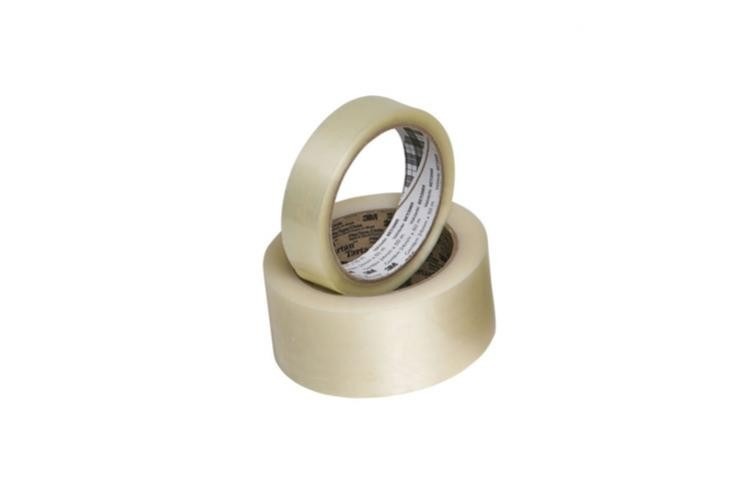

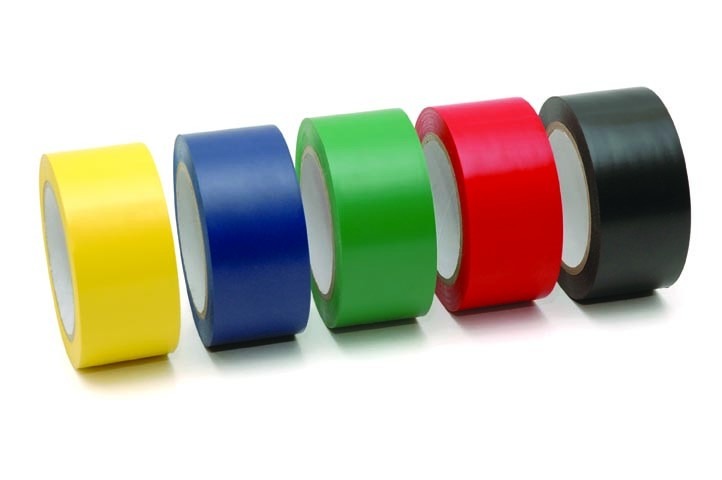

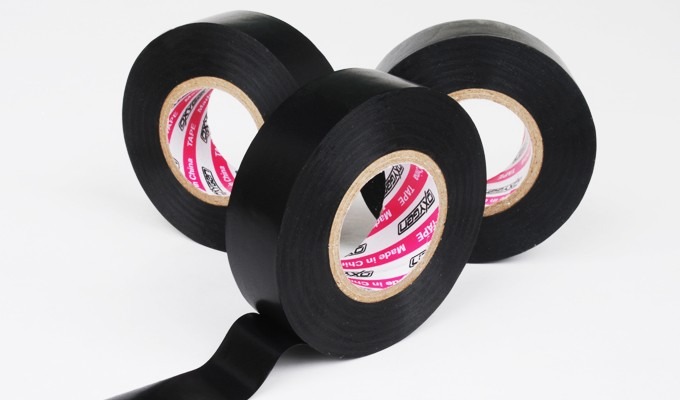

COIL CUTTING MACHINE: MATERIALS THAT CAN BE CUT:

In addition to cutting fabric and ribbon bobbins, Scain's Bobbin Cutting Machine can cut several other materials, check the list below:
